(Elaborate VRET Series)
Full 3D Machined Variable Ratio Titanium Parts Model
True to the name "Elaborate," meaning "crafted meticulously," forged blank material is fully 3D machined.
Lightweight and slim Elaborate series.
This top model uses premium 64 titanium alloy parts in the detailed components of the VRE series.
Lineup
Dimensions
Lever Size & Shape
The brake side is equipped with a "Power Lever" for easier finger force, while the clutch side uses a standard lever that avoids interference with the grip even when fully pulled.
*Photo shows VRC Master Cylinder
 |
Clutch: Straight Lever
 |
Brake: Power Lever
Clamp
 |
| Standard |
 |
| Tank Stay (M6×P1.0) |
 |
| Mirror Holder (M10×P1.25) |

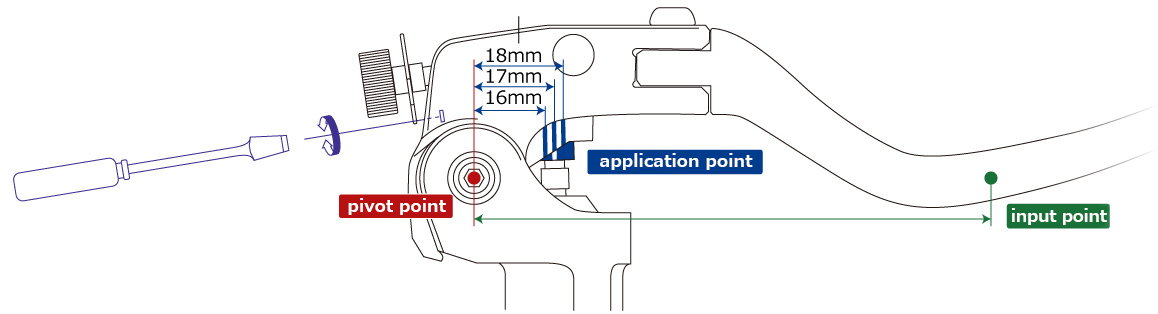

Ratio Adjustment Function
For 16-18mm ratio adjustment
| Pivot to Action Point: 16mm |
 |
| Stroke: Longer Lever Feel: Softer |
| Pivot to Action Point: 17mm |
 |
| Stroke: Standard Lever Feel: Standard |
| Pivot to Action Point: 18mm |
 |
| Stroke: Shorter Lever Feel: Firmer |
| Pivot to Force Point | Pivot to Action Point | Lever Ratio |
| 140mm | 16mm | 8.75 |
| 16.25mm | 8.62 | |
| 16.5mm | 8.48 | |
| 16.75mm | 8.36 | |
| 17mm | 8.24 | |
| 17.25mm | 8.12 | |
| 17.5mm | 8.00 | |
| 17.75mm | 7.89 | |
| 18mm | 7.78 |
| Pivot to Force Point | Pivot to Action Point | Lever Ratio |
| 140mm | 18mm | 7.78 |
| 18.25mm | 7.67 | |
| 18.5mm | 7.57 | |
| 18.75mm | 7.47 | |
| 19mm | 7.37 | |
| 19.25mm | 7.27 | |
| 19.5mm | 7.18 | |
| 19.75mm | 7.09 | |
| 20mm | 7.00 |
For the optimal master cylinder combination with your caliper, please refer to the page below.
Compatibility Calculation
64 Titanium Alloy Used
| Density | Tensile Strength (MPa) | Yield Strength (MPa) | |
| Titanium (ASTM Grade 5) | 4.43 | 895 | 825 |
| Chromoly Steel (SCM435) | 7.8 | 930 | 785 |
| Stainless Steel (SUS304) | 7.9 | 520 | 205 |
| Aluminum (A7075) | 2.8 | 570 | 505 |
A: Lever Adjust Dial |
 |
| ・Titanium lever adjust dial ・Parallel pin (steel) ・Snap pin (stainless steel) |
| Purchase Individually |
B: Pivot Pin |
 |
| ・Titanium pivot pin ・Titanium thin nut M6 |
| Purchase Individually |
C: Adjuster Pin |
 |
| ・Titanium adjuster pin |
| ※Not sold individually (VRET exclusive accessory) |
D: Low Head Cap Bolt |
 |
| ・Titanium low head cap bolt |
| Purchase Individually |
E: Bleeder Valve |
 |
| ・Titanium bleeder valve |
| Purchase Individually |
F: Clamp Bolt |
|
| ・Titanium clamp bolts (2 pcs) |
| ※Standard equipment for VRE series |
Features
Radial Piston |
 |
| Unlike axial pistons, the lever presses the piston vertically, reducing power loss and allowing precise control. |
High Clamping Force |
 |
| The clamp has slot machining inside and uses two flange bolts, improving fixing strength. |
Aluminum Machined Body |
 |
| Full 3D machining of forged blanks is done in-house. The body is finished slimmer than existing designs. |
Foldable Lever |
 |
| The lever folds during a fall, reducing damage to the master body (replacement lever tips available). |
Two Lever Sizes |
 |
| Available in standard and short sizes. Fits the rider's hand naturally for smooth operation. |
Overhaul Service |
 |
| Detailed overhaul service made possible by in-house production (items received). |
| Details Here |
