WIRE CLUTCH PERCH KIT
High-spec clutch perch kit for perfect lever operation
A wire clutch perch kit with all kinds of adjustment functions to make clutch operation smooth. It gives you an operating feel that feels just like it was made to order.
|
| Ratio adjuster |
| Equipped with two types of drum holders that allow you to adjust the lever ratio. You can choose the lightness and feel of operation. *Operation may be heavy for vehicles where the distance from the pivot to the center of the drum is 32 mm or less. |
|
| Lever opening adjustment mechanism |
| The lever opening can be adjusted in 12 steps by turning the dial. You can adjust it to your liking. |
 |
| Mechanical switch |
| When you purchase this product, a two-terminal mechanical clutch switch for mounting on your vehicle is included. |
 |
| Lever hollowing out |
| The lever is hollowed out to reduce weight. In the event of a fall, only the tip breaks off, allowing you to continue riding. |
 |
| Bearing built-in |
| The pivot part that connects the bracket and knocker is designed to operate smoothly even when the pivot pin is tightened. *ELABORATE/Red logo lineup is gold |
 |
| Wire adjustment dial |
| The wire slack can be easily adjusted even while wearing gloves, making it easy to maintain. |
 |
| Foldable lever |
| The tip of the lever is designed to fall down in the event of a fall, reducing the impact on the main body. We also sell repaired lever parts. |
 |
| Lighter than the stock ratio |
| The bearings in the pivot section reduce resistance when pulling the lever, allowing for smooth clutch operation. |
| Changes in lever touch due to drum holder. |

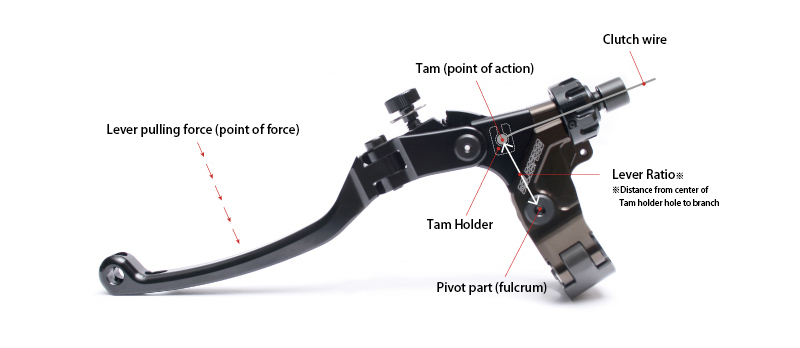

| Using the principle of leverage, the ease and lightness of the clutch release can be changed by changing the distance from the point of action (the drum) to the fulcrum (the pivot section). |
 |
 |
| Two types of drum holders included |
| 28mm and 30mm, or 32mm and 34mm drum holders are included. Please choose the holder size that gives you the touch you prefer. |
| ＜Distance to fulcrum＞ |
| ●If it is far away The stroke will be shorter and the clutch will disengage better. *Depending on the vehicle model, clutch operation may become heavy. ●If it is close The stroke will be longer and clutch operation will become lighter. *Depending on the vehicle model, the clutch may not disengage. |
WIRE CLUTCH PERCH KIT LINE- UP
 |
||
|
 |
||
|
 |
||
|
 |
||
|
 |
||
|
CLAMP SHAPE
 |
||
|
 |
||
|

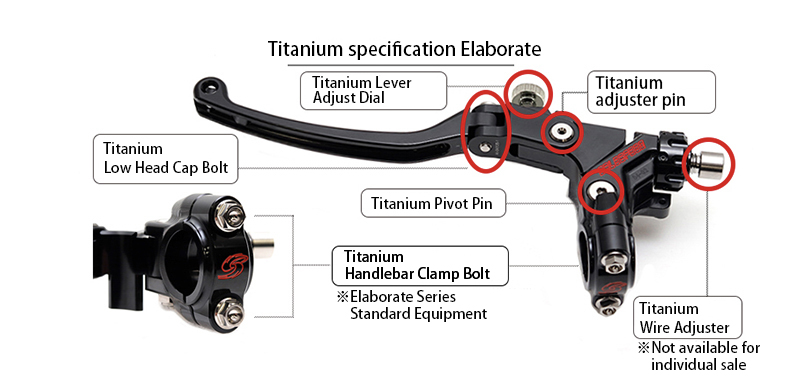

TITANIUM SPECIFICATION ELABORATE WIRE CLUTCH PERCH KIT
The Elaborate Titanium Wire Clutch Perch Kit is a high-end model with titanium detailing.
(Titanium lever adjust dial, titanium low head cap bolt, titanium adjuster pin & clip, titanium pivot pin set, titanium handle clamp bolt)
| FEATURES |
| Titanium lever adjust dial |
 |
 |
| Titanium low head cap bolt |
 |
 |
| Titanium adjuster pin & clip |
 |
 |
| Titanium pivot tweezers |
 |
 |
| Titanium wire adjuster |
| ※Not sold separately |
 |
 |
| Titanium handle clamp bolt |
| ※Standard equipment for Elaborate series |
 |
 |
| TITANIUM PARTS SOLD SEPARATELY |
| Product name | Contents | |
|---|---|---|

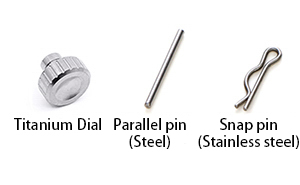

| Titanium lever adjustment dial | |
Click here for details |
| Titanium low head cap bolt |  |
Click here for details |
| Titanium adjuster pin & clip | |
Click here for details |
| Titanium pivot pin SET | |
Click here for details |
