| How to choose a Rear Master Cylinder |
| Please note: The rear Master cylinder is a universal product. We recommend consulting with a local technical shop for advice based on the following information. |
|---|
| Rear Master Cylinder SPEC |
| Piston size | Φ12 |
|---|---|
| Compatible calipers | to an opposed 2-piston caliper (φ32/φ34) |
| 90° Fluid nipple (included) | Φ7.3(NISSIN etc.)/Φ6(GALESPEED/brembo) |
| Return spring (included) | Standard (black)/Hard (red) |
| Rod ends | M6/M8 |

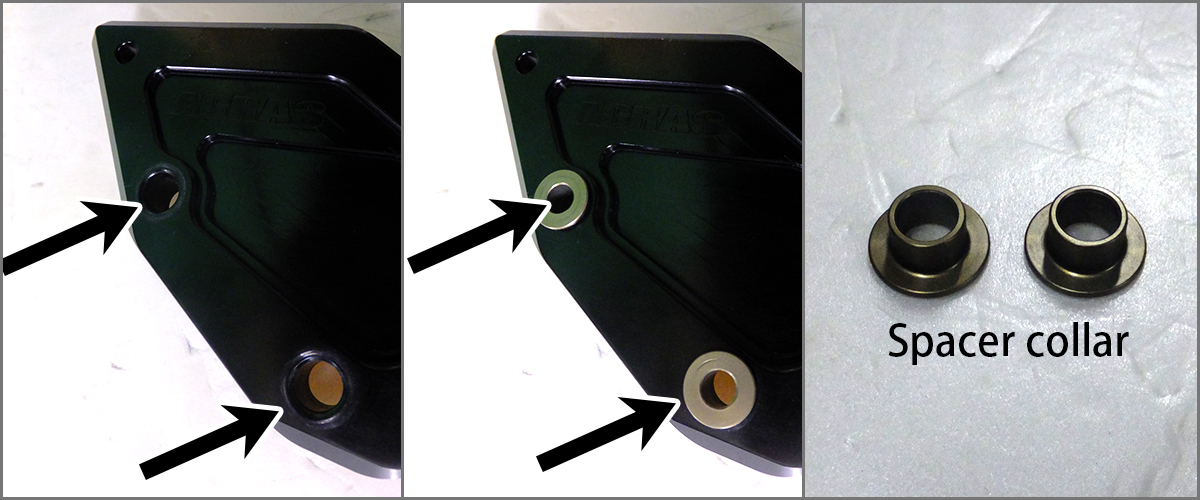

| Spacer (included) | M8⇒M6 conversion spacer in rearset side |
| Bolt pitch | P1.00 |
| ●How to use speacer collar | |
 |
|
| STEP1: | Decide the purpose of use |
| Determine what you want to use the rear master cylinder for | |
| Click the photo shown below on website to view more details. |

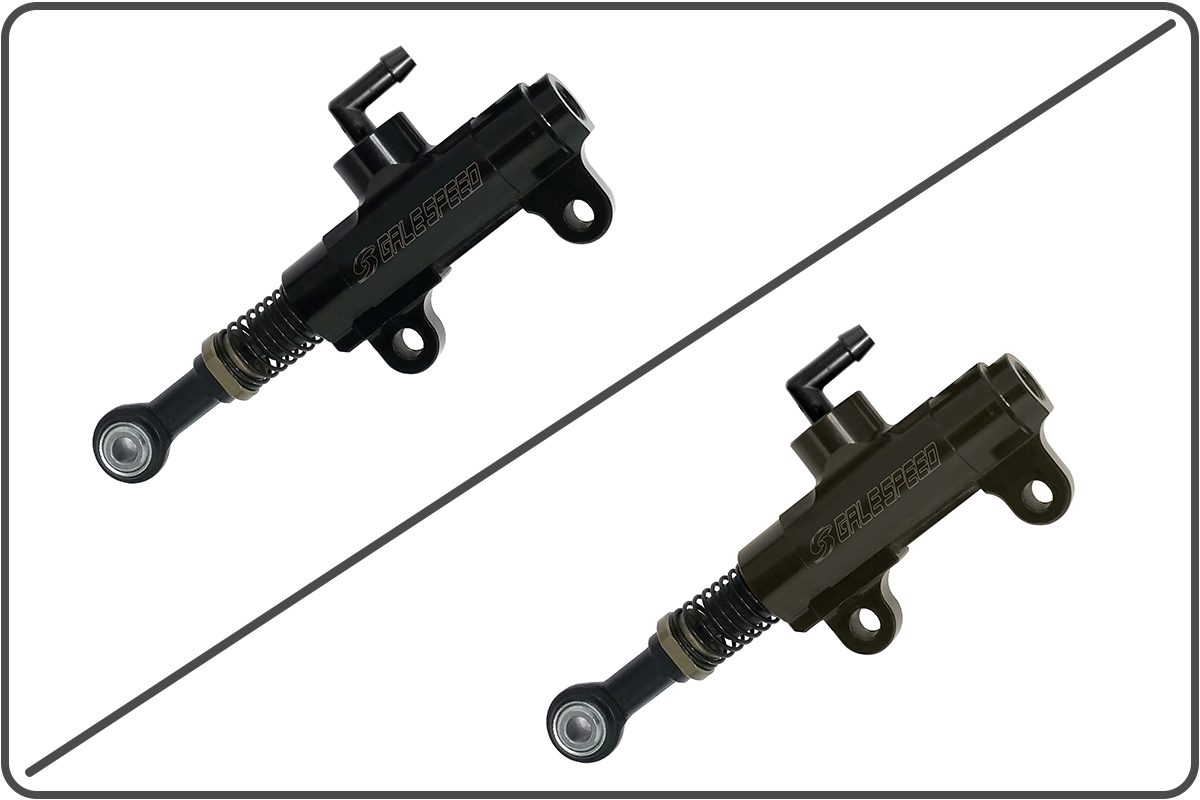

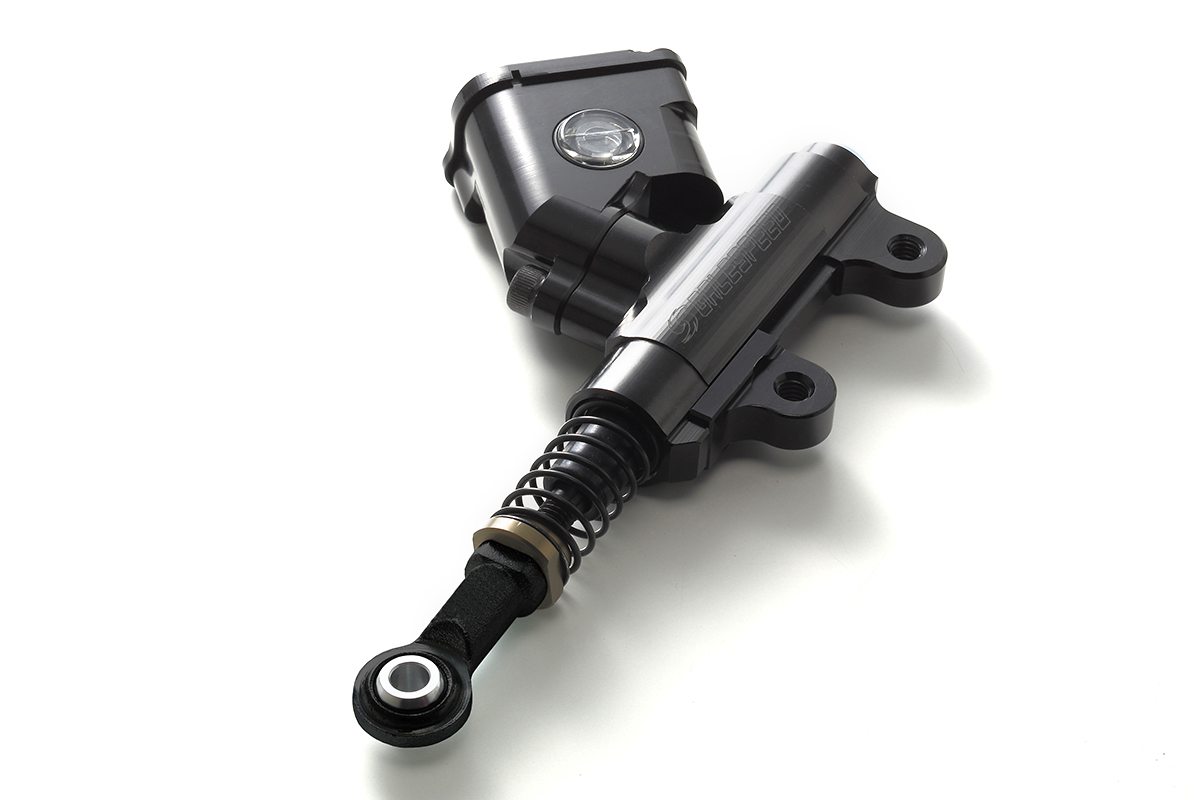

| Rear Master Cylinder |
 |
| Rear Master Cylinder for Thumb Brake |
 |
| ※For race use only |

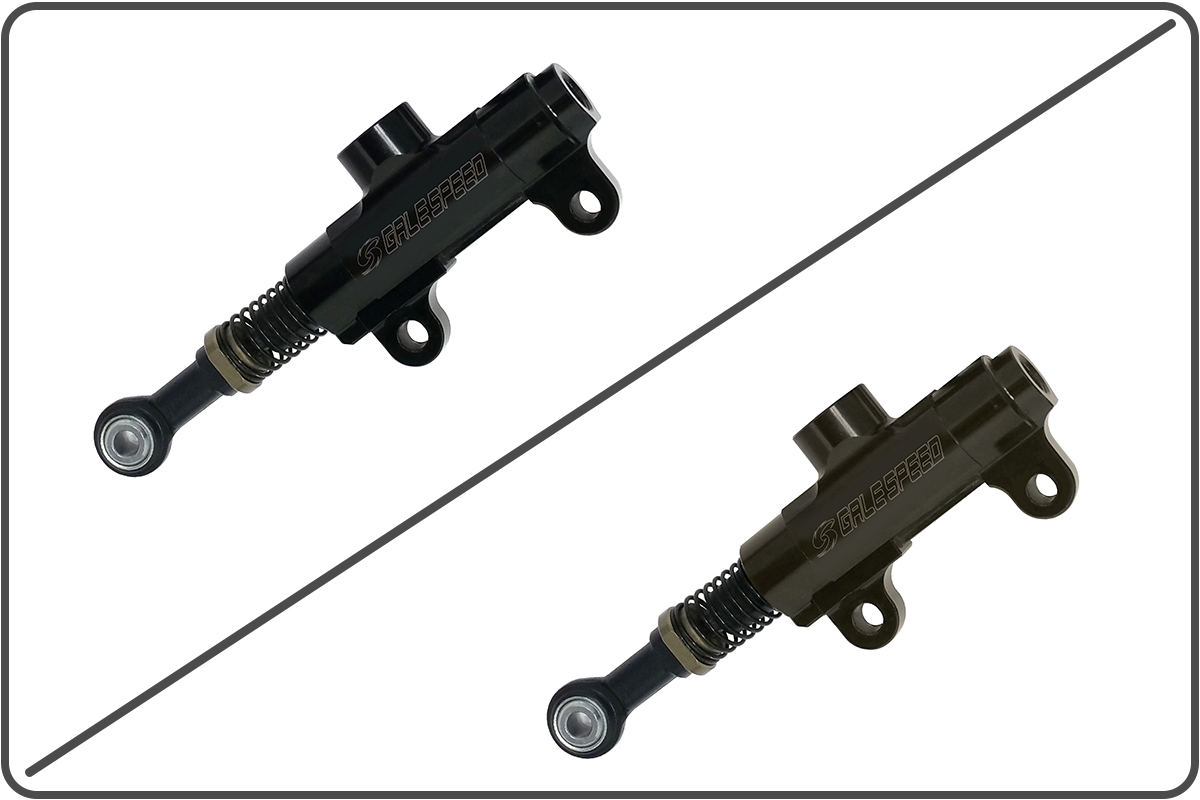

| STEP2: | Check compatibility with your model |

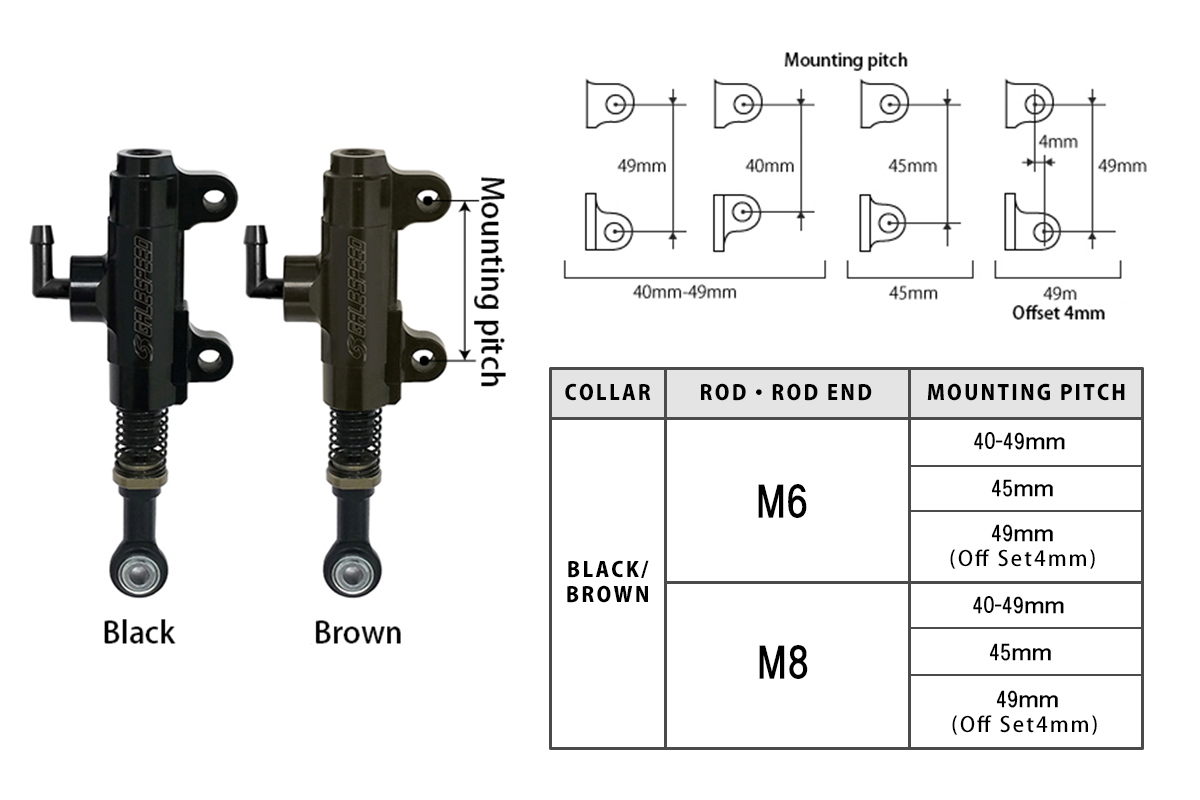

| Mounting pitch and hole size: | |
| Refer the mounting pitch shown in our lineup and select one that fits your model. |

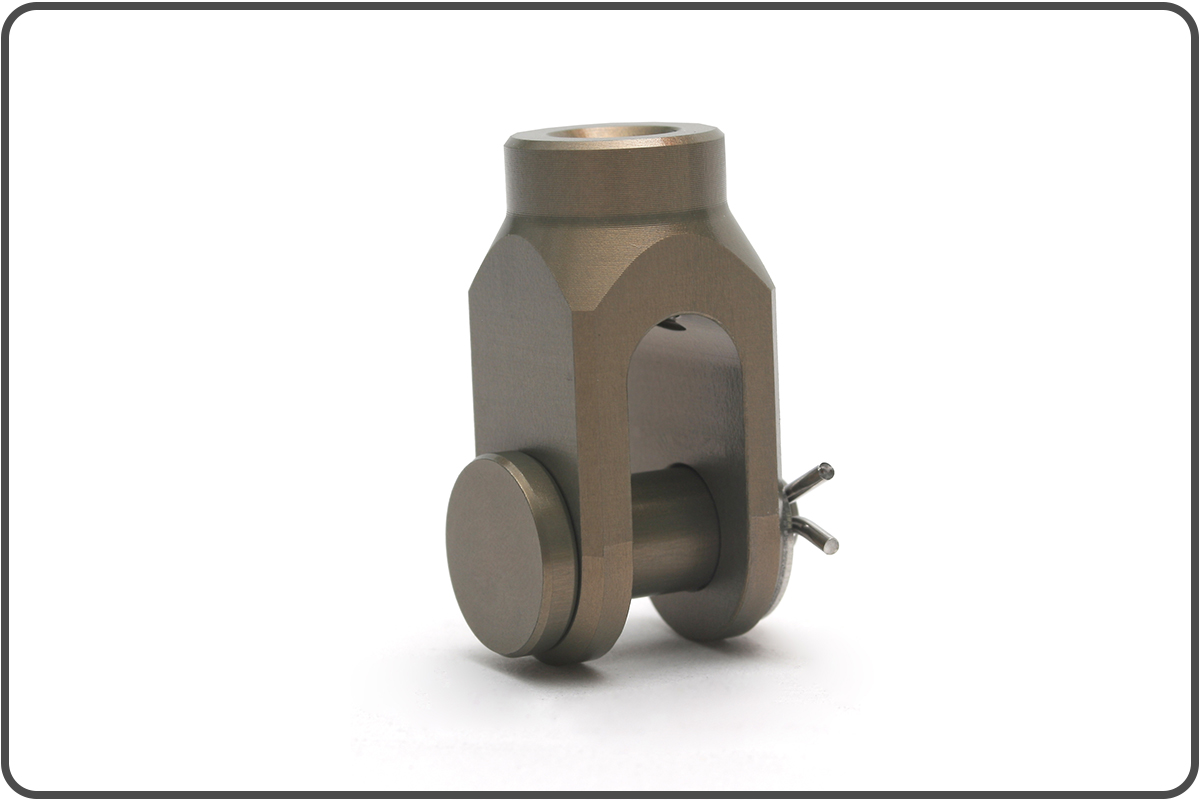

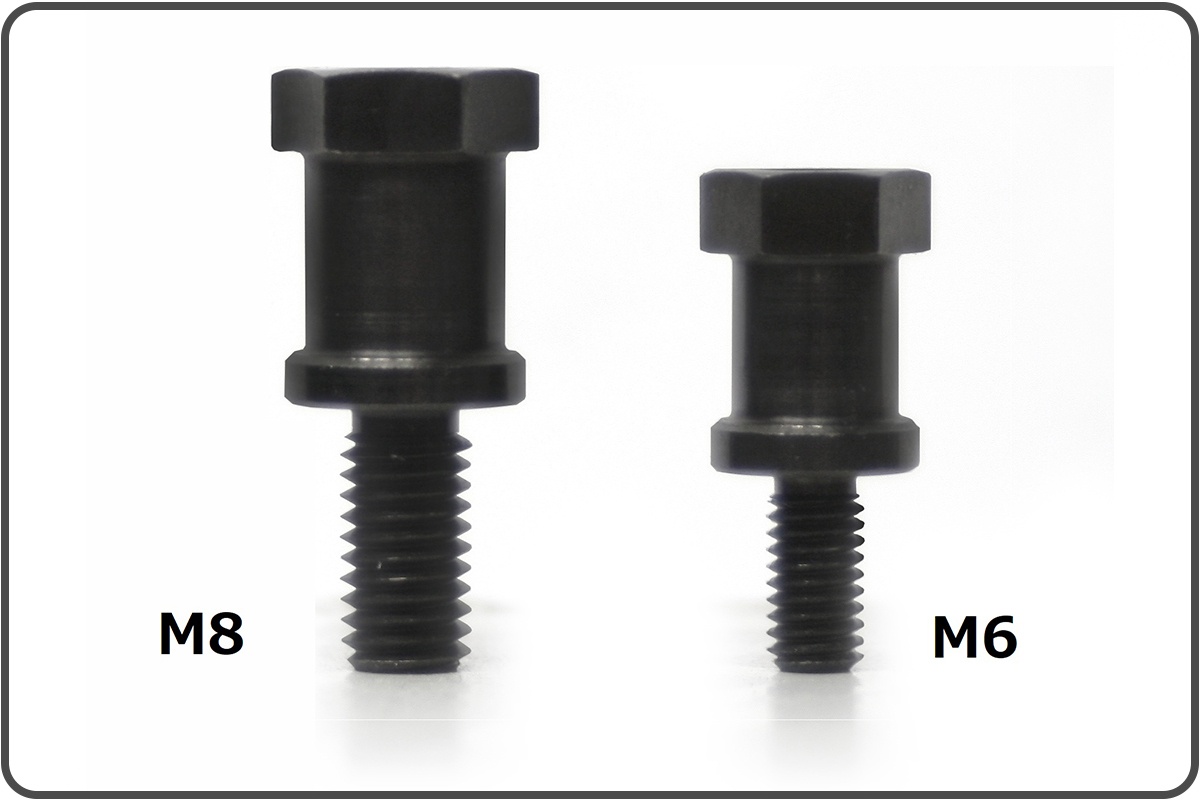

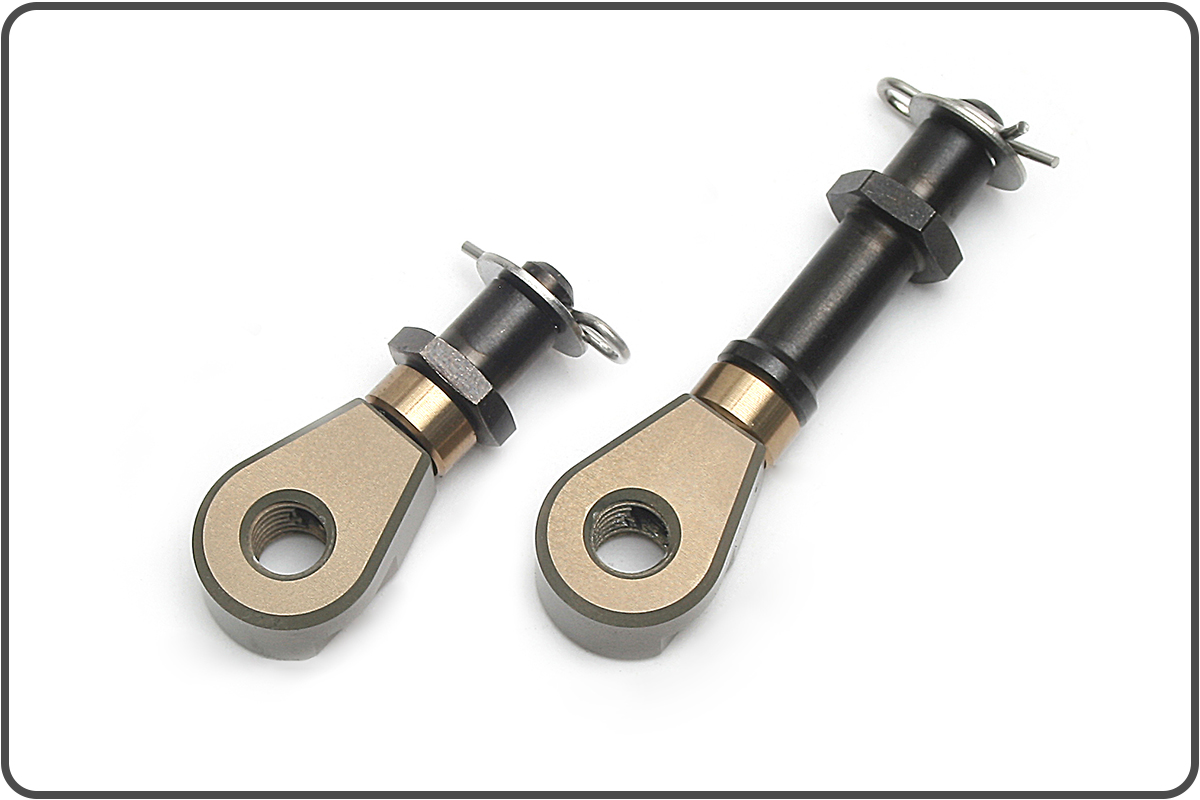

| ■ | Rod end size/shape |

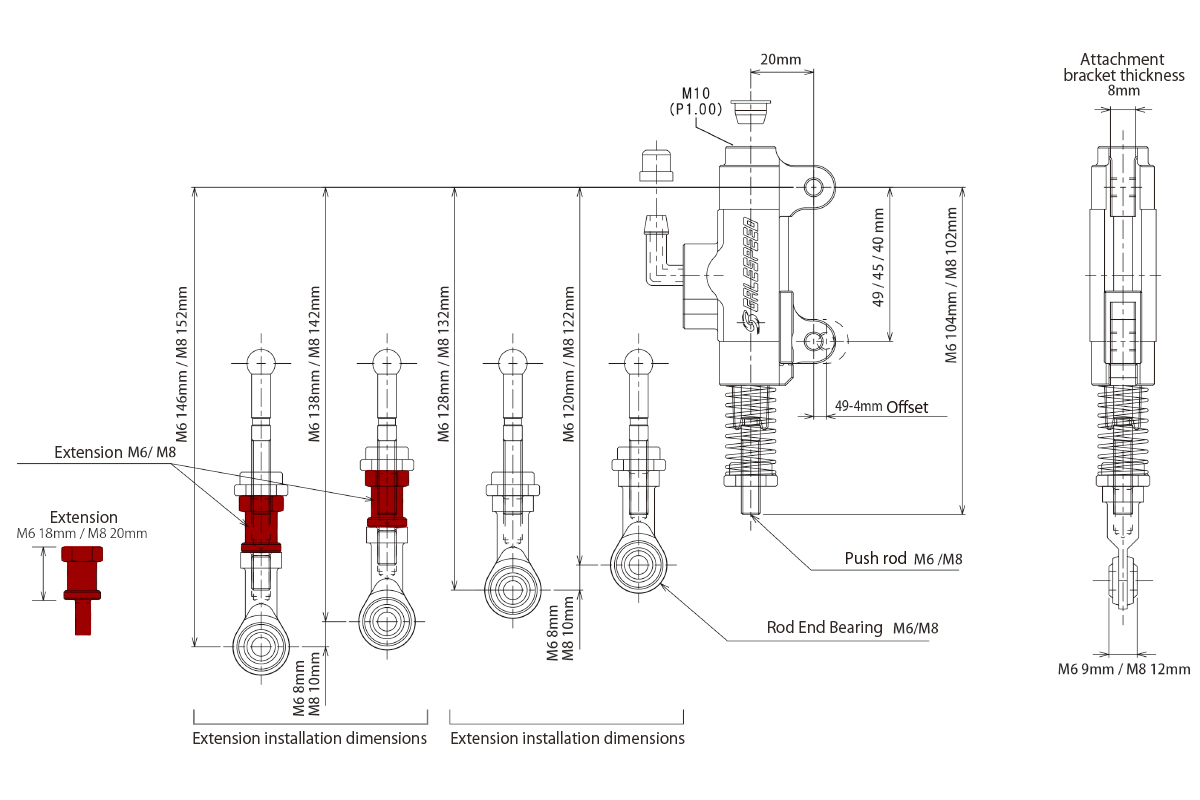

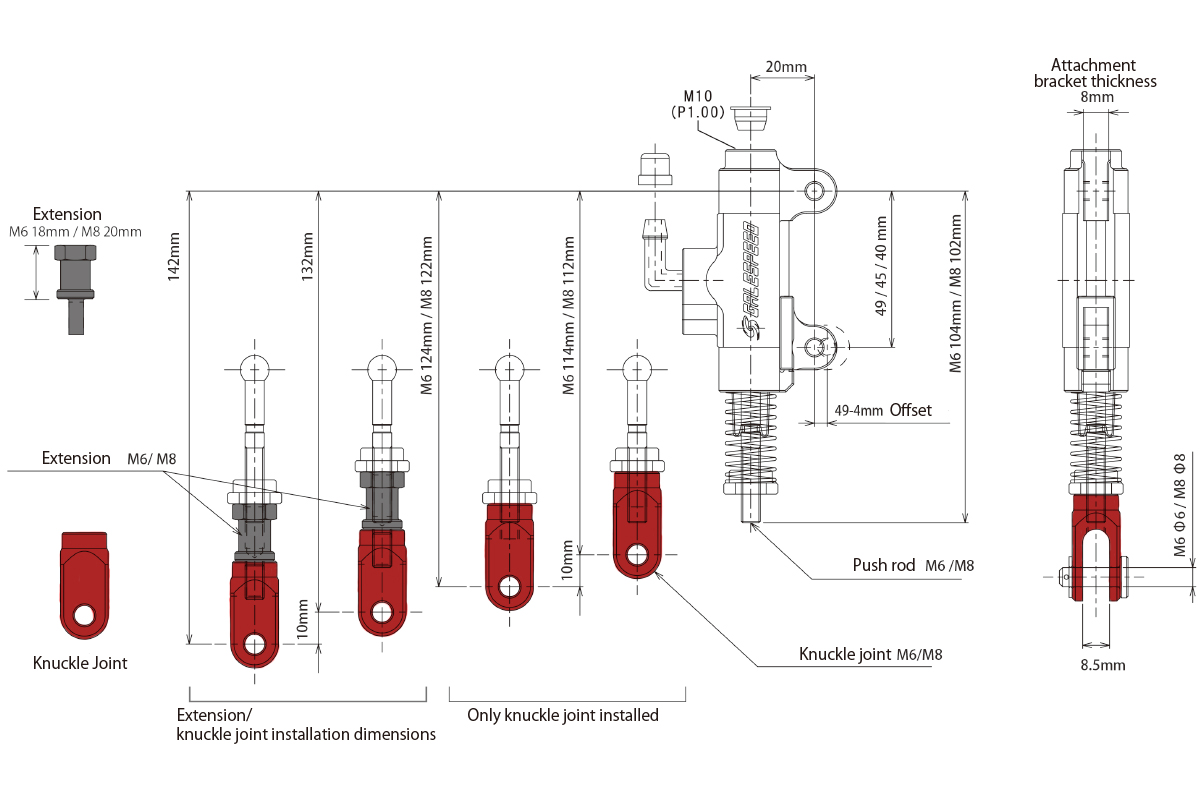

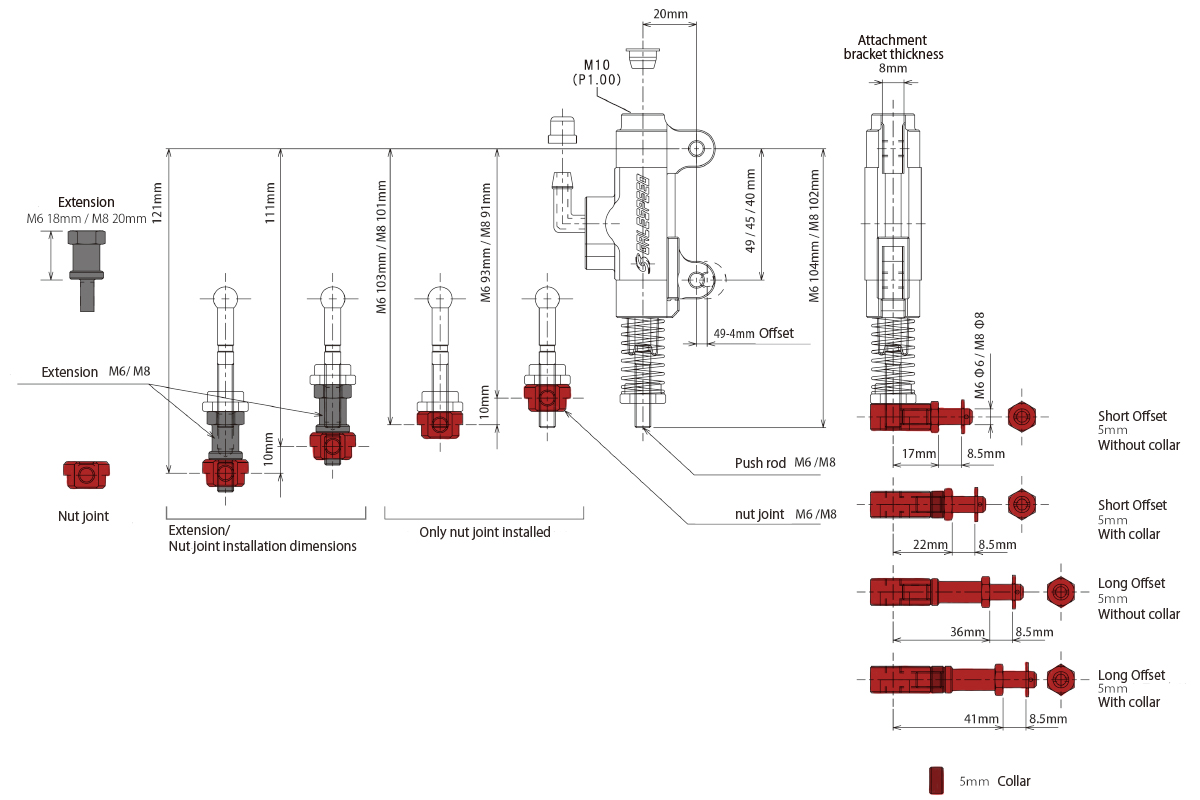

| Refer to drawing data below to confirm whether optional parts are required for installation. | |
| Click the photo shown below on website to view more details. |
| Click here for details |
| Click here for details |
| Click here for details |
| STEP3: | Use spacers to align the master body and rod end |
| Its bracket was designed a little thinner than OEM. | |

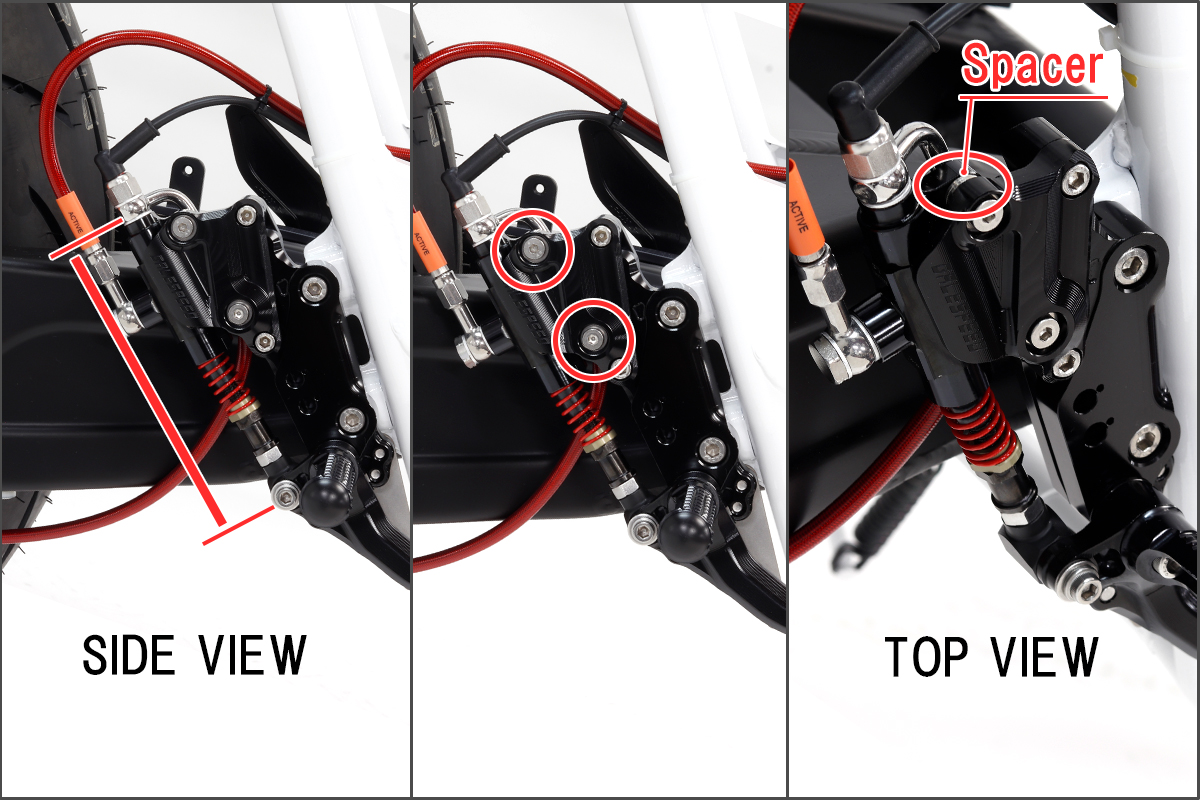

| So you might use a spacer or washer to align the rod end with the body, as shown in the photos below. |
| STEP4: | Other Optional items for your oder. |

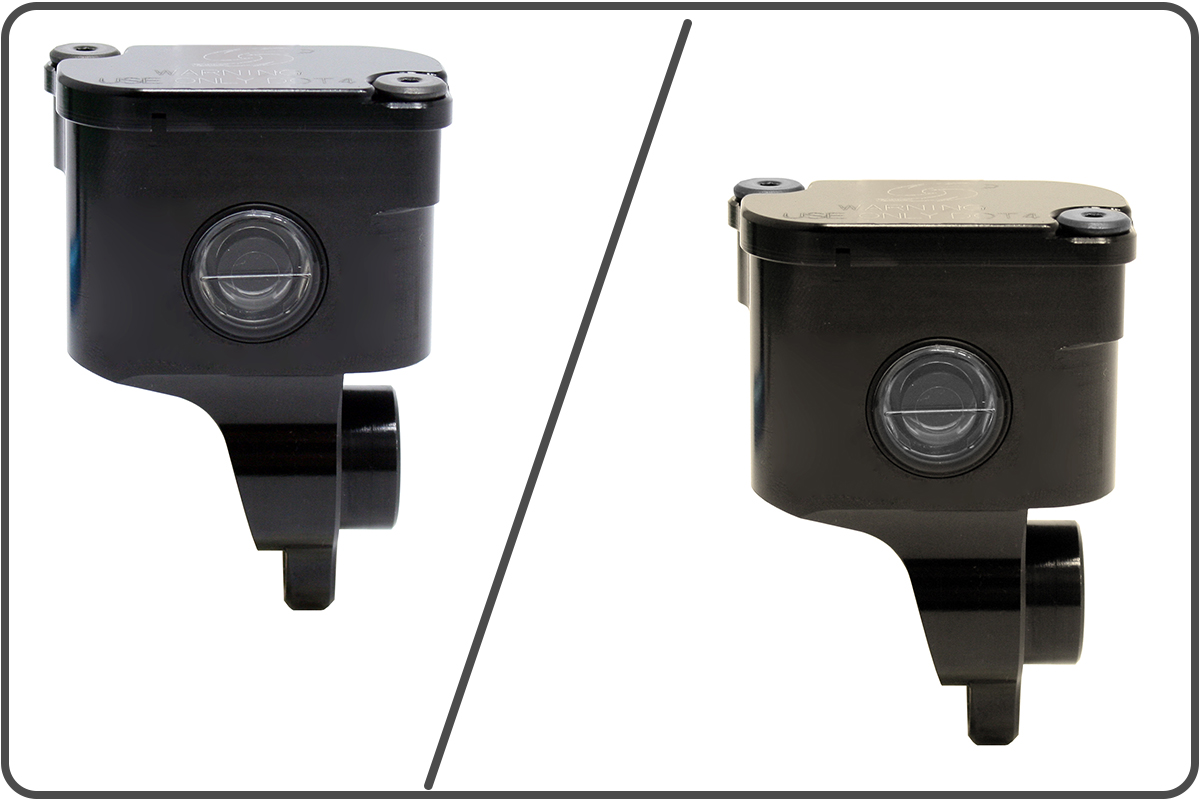

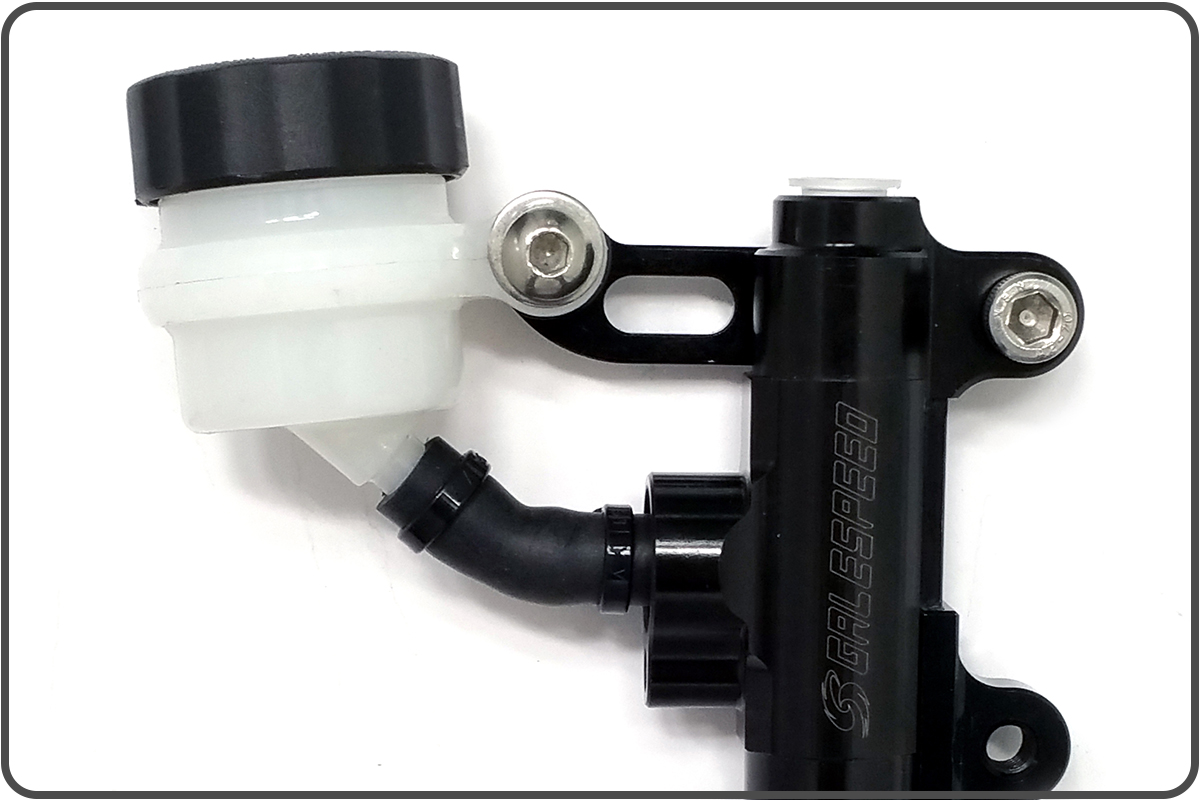

| Machined Aluminum Reservoir Tank |
 |
| Oil Tank/Tank Hose |
 |

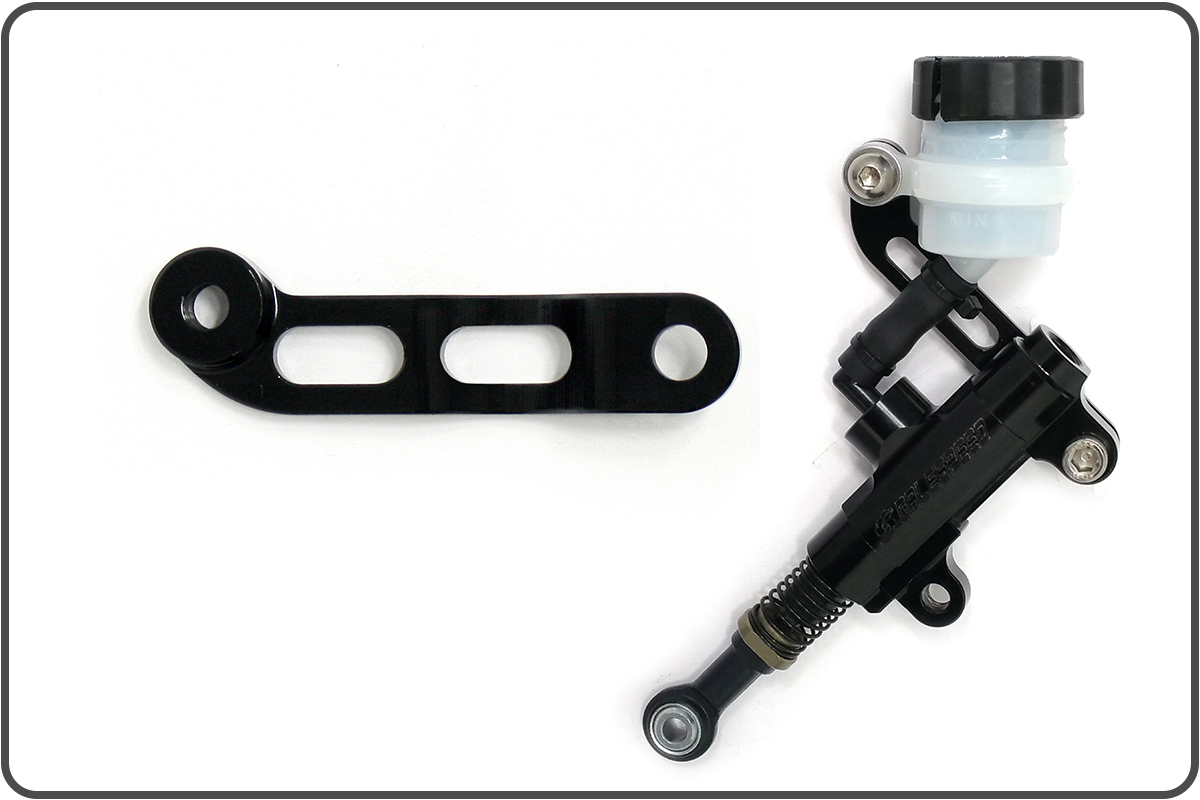

| Bracket for Oil Tank |
 |

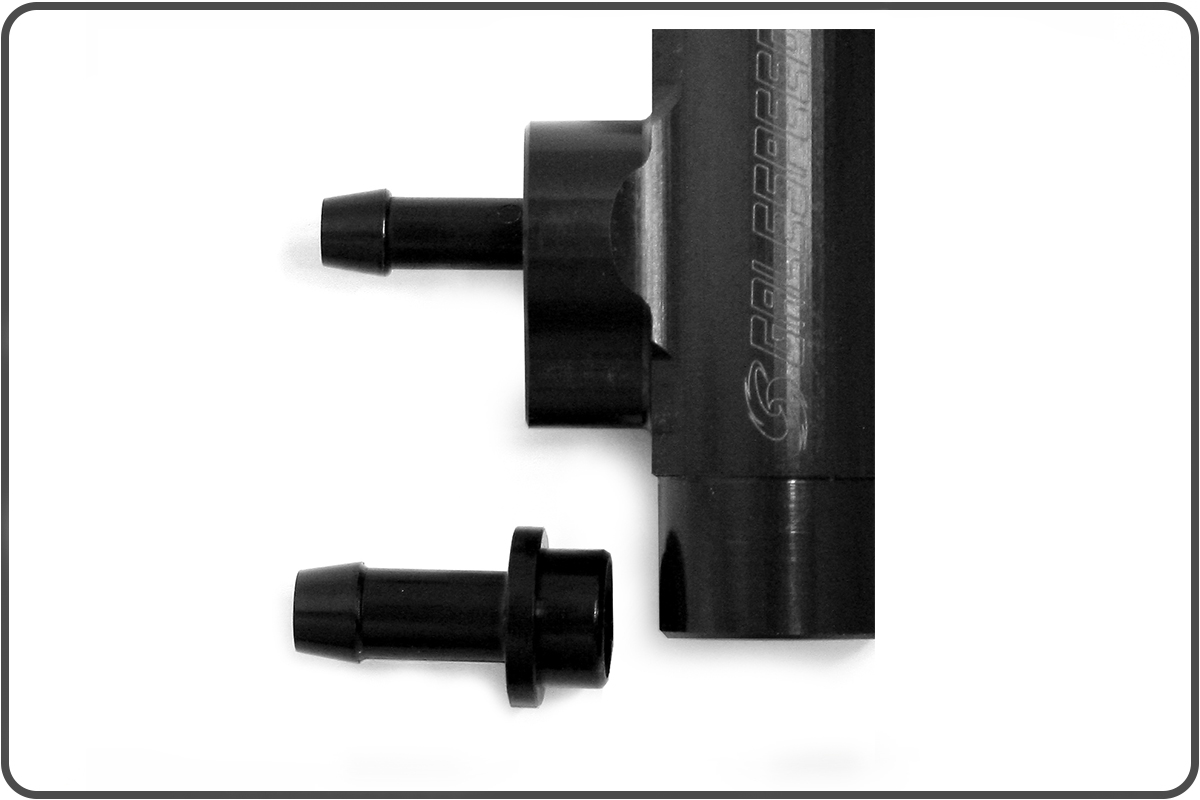

| Straight Nipple |
 |
