| Please note: |
|---|
| ※The master cylinder is a universal product.The suitable master can be calculated using your caliper piston diameter. |
| ※The result is theoretical; installation may vary by motorcycle model. |
| ※For fitment and braking feel, consult a professional shop. |
| Line-Up |
| PISTON SIZE | Φ14, Φ16, Φ17.5, Φ19 | ||||||||
|---|---|---|---|---|---|---|---|---|---|

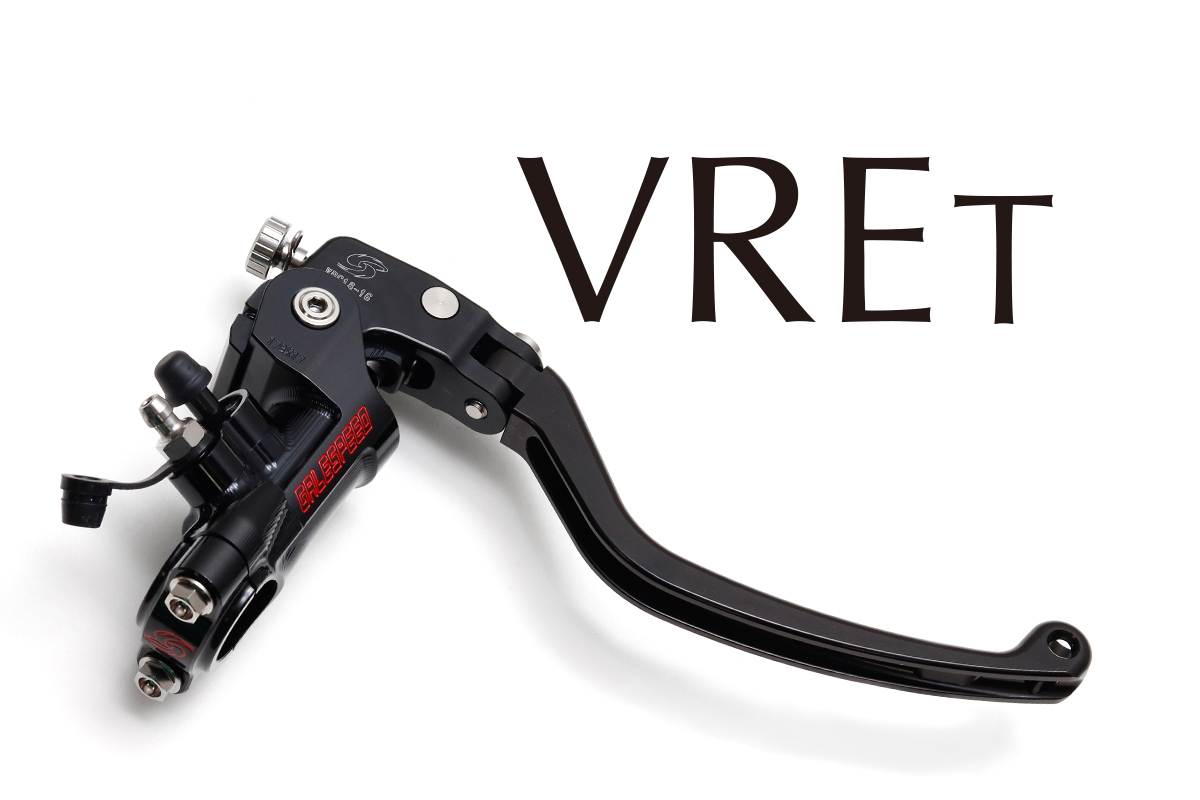

| LINEUP | Elaborate ※VRET:TITANIUM |
Dark Edition | Standard | ||||||
 |
 |
 |
|||||||
| CLAMP TYPES: 3 TYPES |
|
||||||||

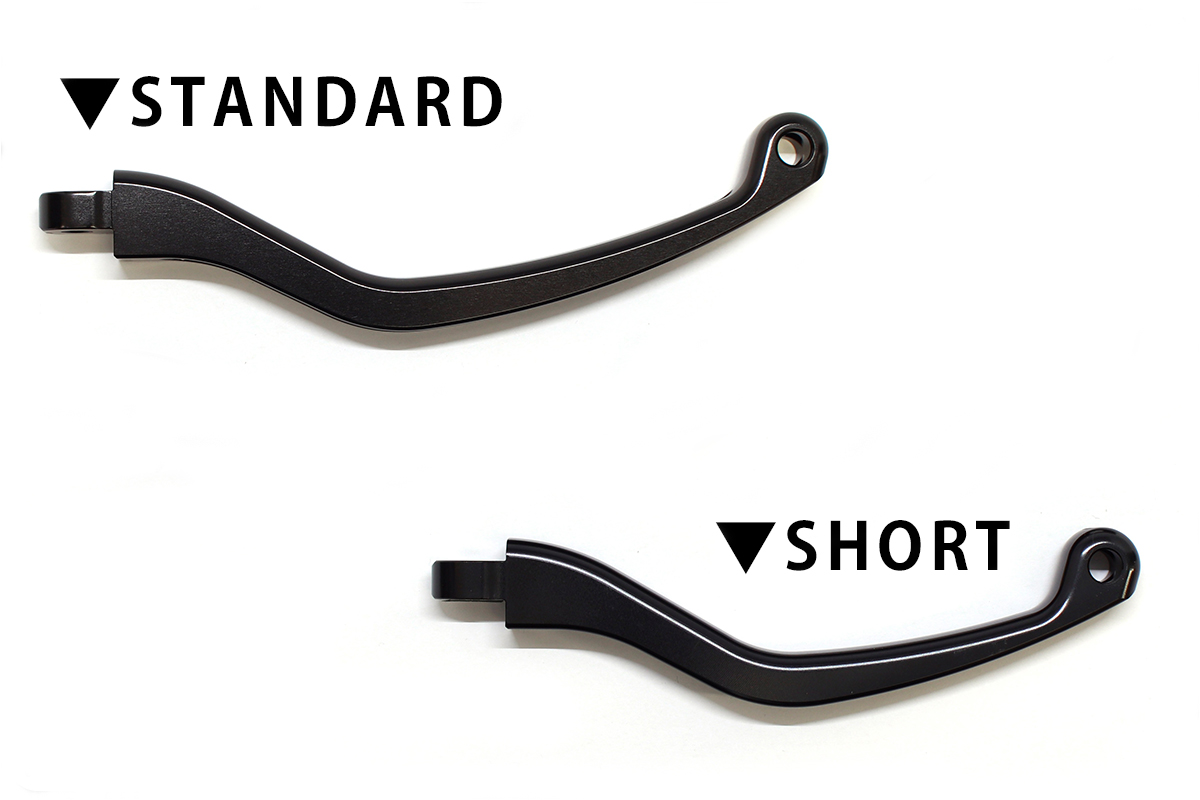

| LEVER TYPES: 2 TYPES |
 |
||||||||
| BOLT PITCH | P1.00 | ||||||||
| Difference Between Types |
| SERIES | MATERIAL | BODY CUTTING | BODY COLOR | CLAMP | CONVERTIBLE HANDLE | PIVOT PIN |
|---|---|---|---|---|---|---|

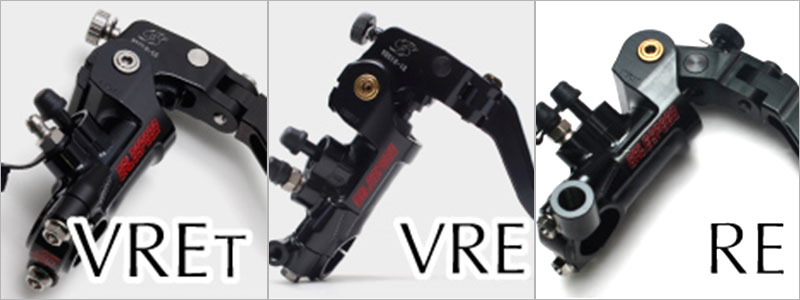

| Elaborate | Aluminum Forging | FULL 3D | Black (logo in red ink) |

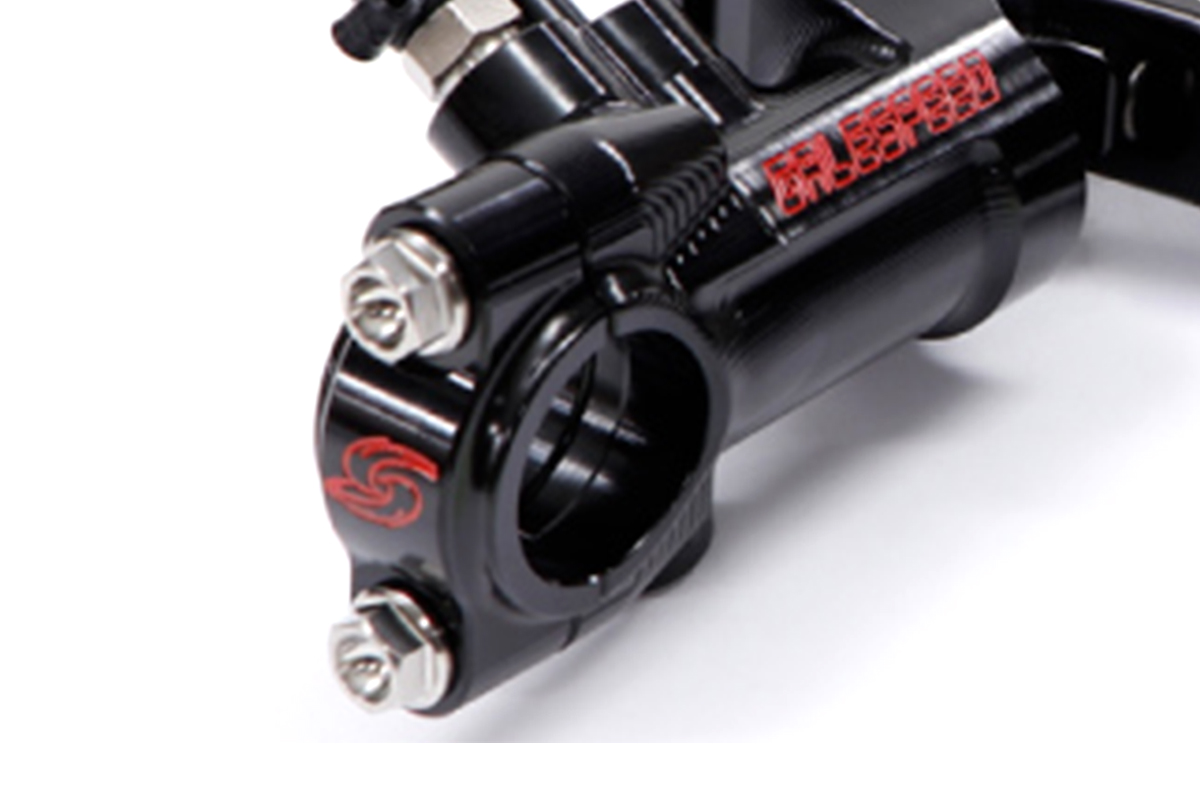

Two Point Mounting (Slot Processing) |
Φ22.2 | Gold(Titanium Coating) ※VRET(Titanium/Silver) |

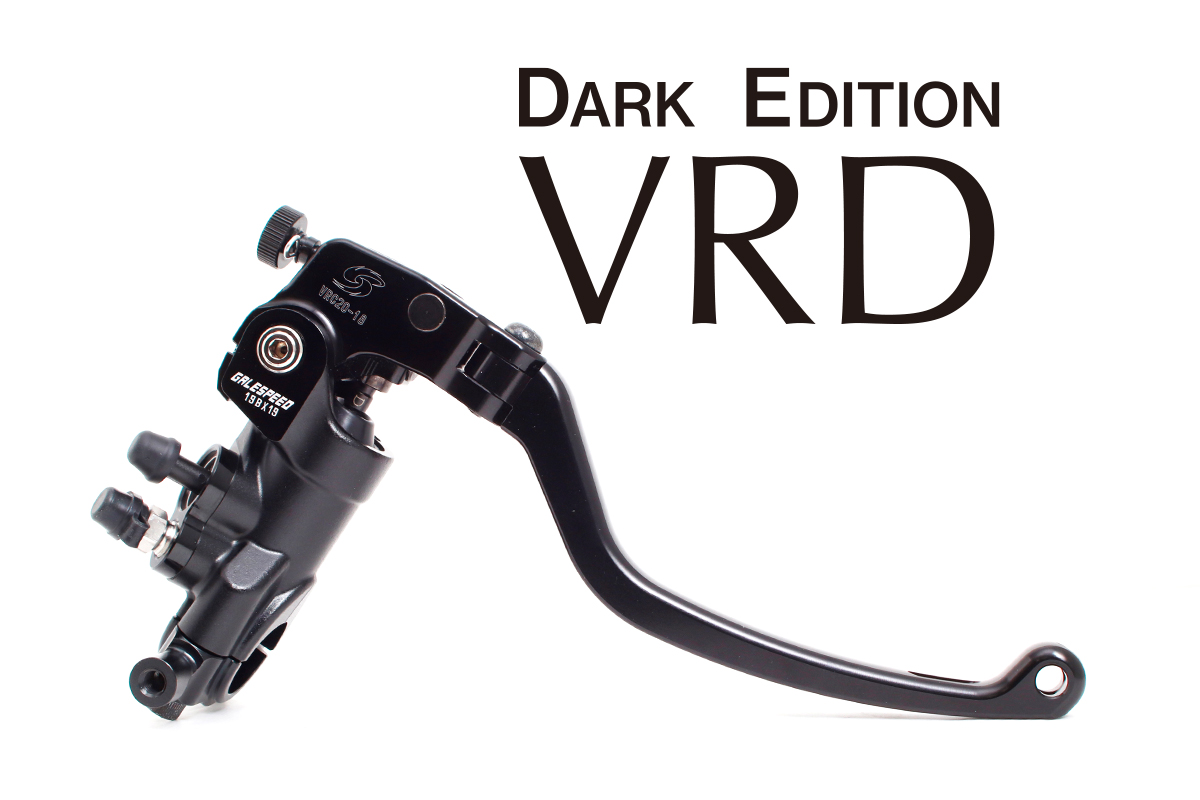

| Dark Edition | 2D | Matte Black | Two Point Mounting | Silver | ||

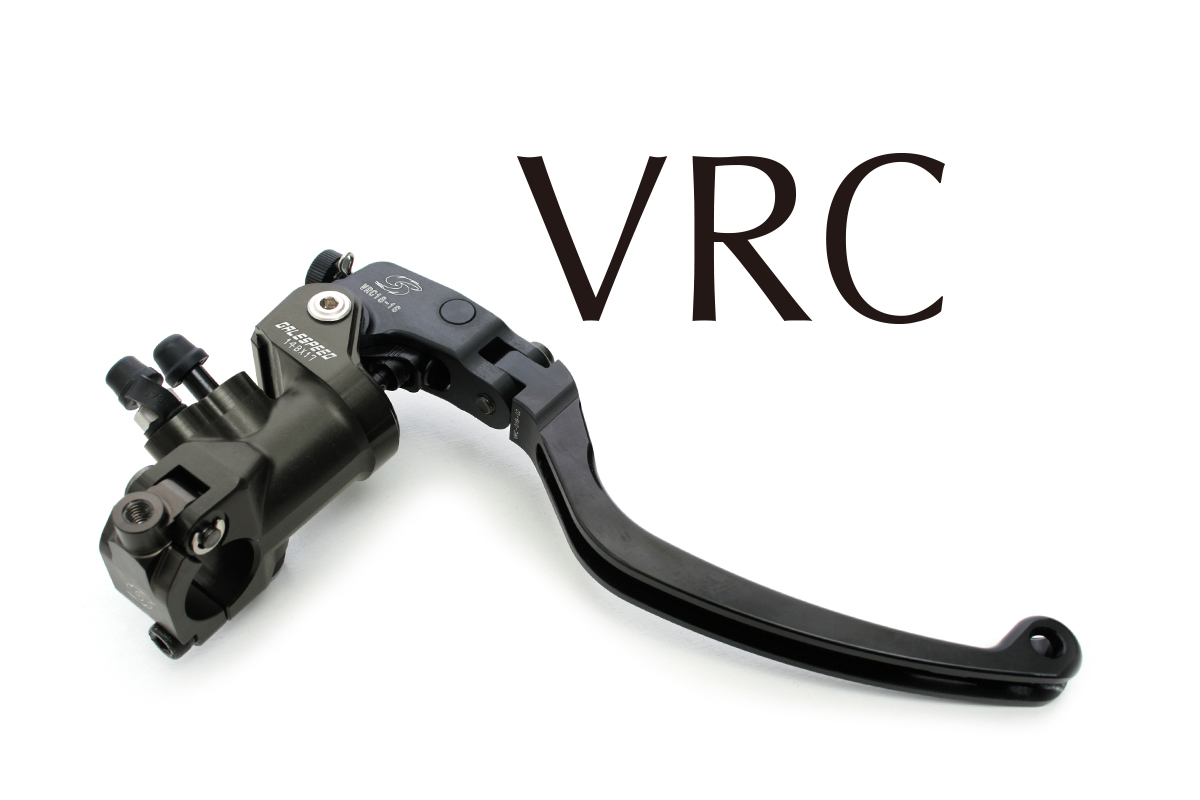

| Standard (VRC/RM) |
Hard Anodized | One Point Mounting (Quick Release) |
Φ22.2/1 inch |

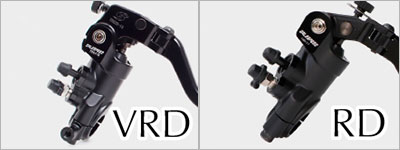

| type with ratio adjustment function | ||
|---|---|---|
 |
 |
 |
 |
 |
|

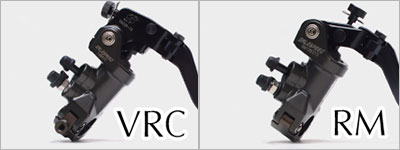

| type without ratio adjustment function | ||
|---|---|---|
 |
 |
 |

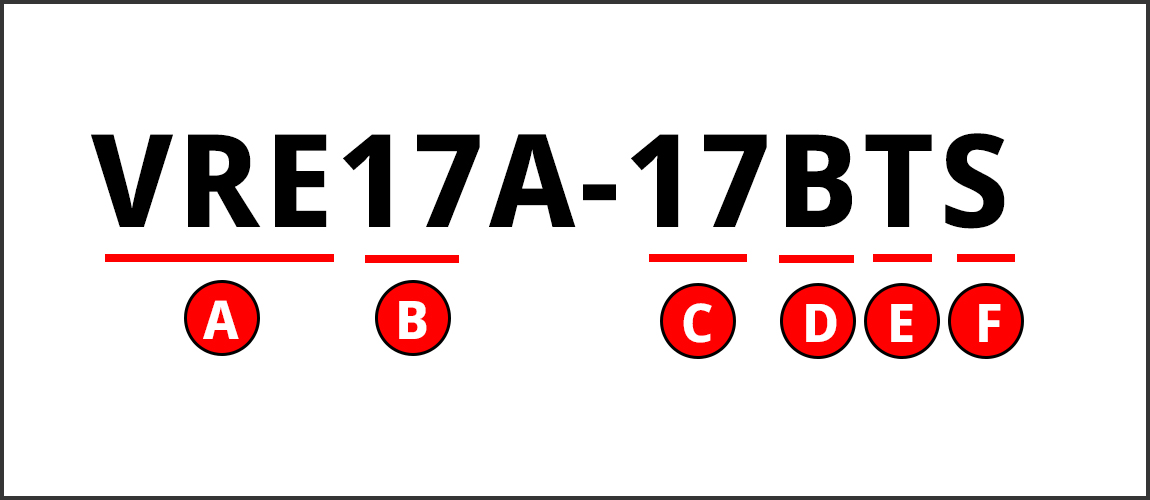

| How to Read Part Numbers |
| A | B | C | D | E | F |
|---|---|---|---|---|---|
| ↓ | ↓ | ↓ | ↓ | ↓ | ↓ |

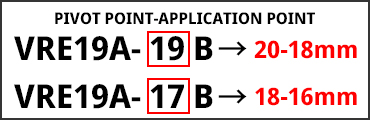

| MODEL | PISTON SIZE | PIVOT ~ PISTON CENTER DISTANCE 17&19 |
BRAKE:B CLUTCH:C |
HOLDER TYPE STANDARD:BLANK |
LEVER SIZE STANDARD:BLANK |

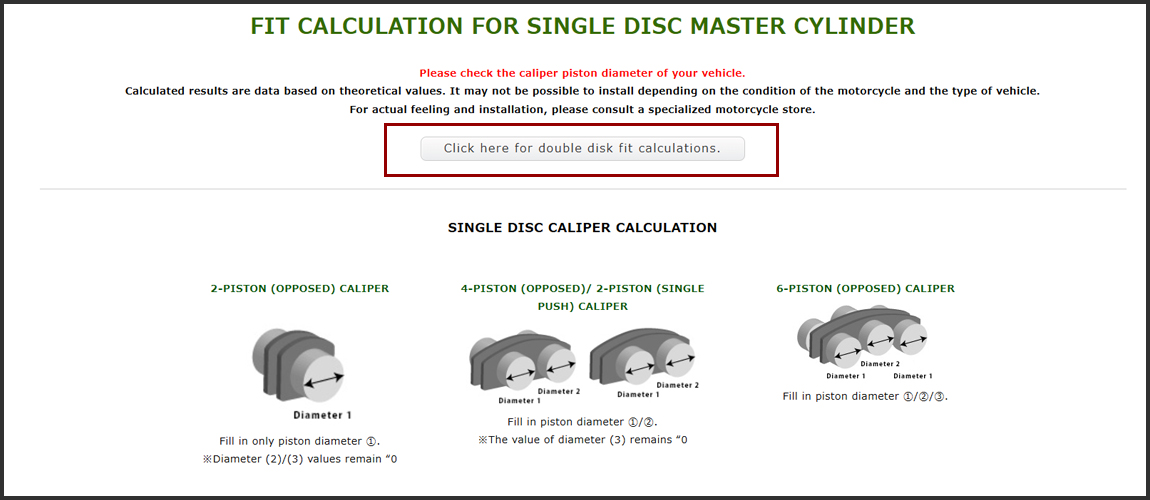

| Master Cylinder Compatibility Calculation |
| STEP 1 | Check if there is enough space around the handlebar for installation. |
| ↓ | |
| STEP 2 | Check disc type: double or single. |
 |
|
| ↓ | |
| STEP 3 | Check caliper specifications. |
| ・Opposed piston or single piston | |
| ・Number of pistons | |
| ・Piston diameters | |
| ↓ | |
| STEP 4 | Enter the above information into the calculation formula to determine the total ratio and select the appropriate master cylinder. |
 |

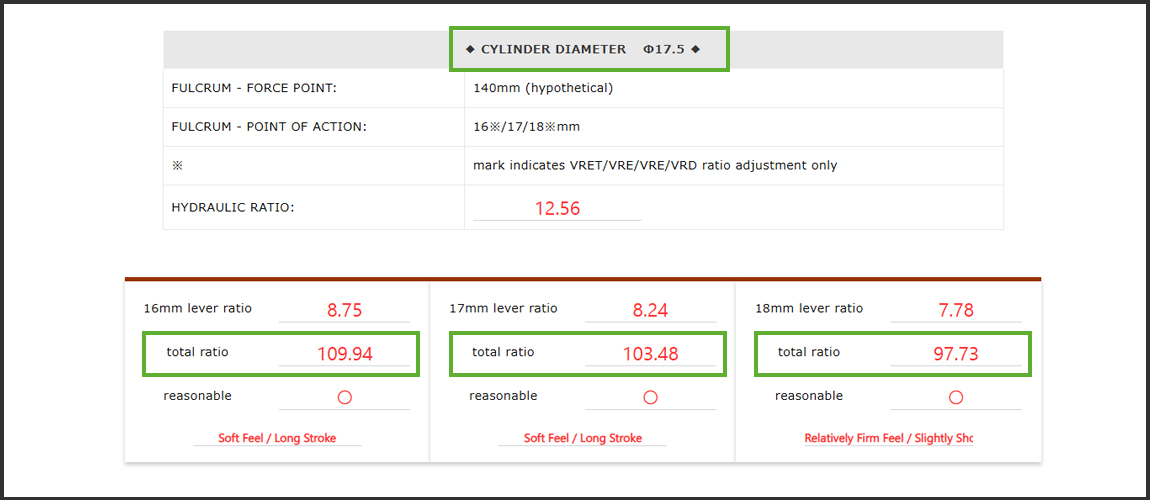

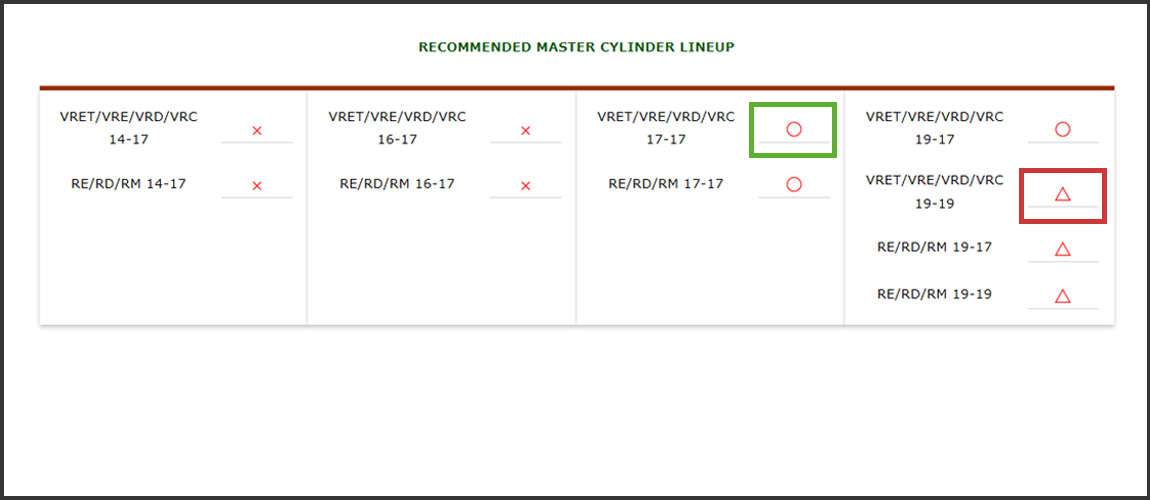

| How to read the calculation results |
 |
| “〇” mark indicates compatibility. "△" indicates that installation is possible but not recommended. |
 |
| Please check the total ratio value corresponding to the master cylinder’s piston diameter (Φ). |

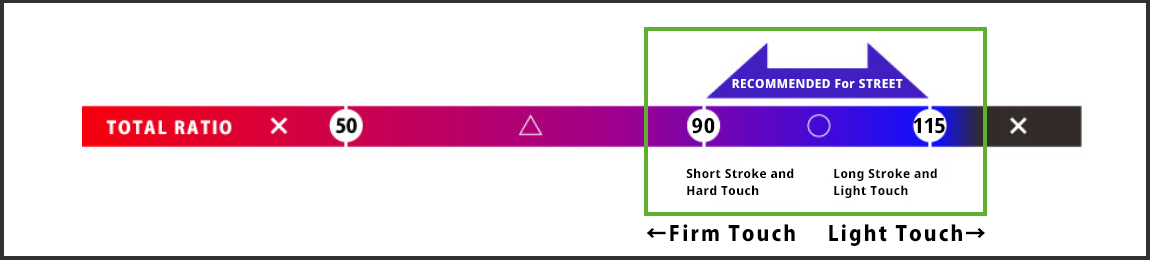

| What is the recommended total ratio value? |
| Recommended for street use: Between 90 and 115 |
| ※Below 90 is ideal for racing.Above 90 makes the lever easier to pull.Adjust the ratio for a softer feel. |
| What parts are required for installing the master cylinder? |

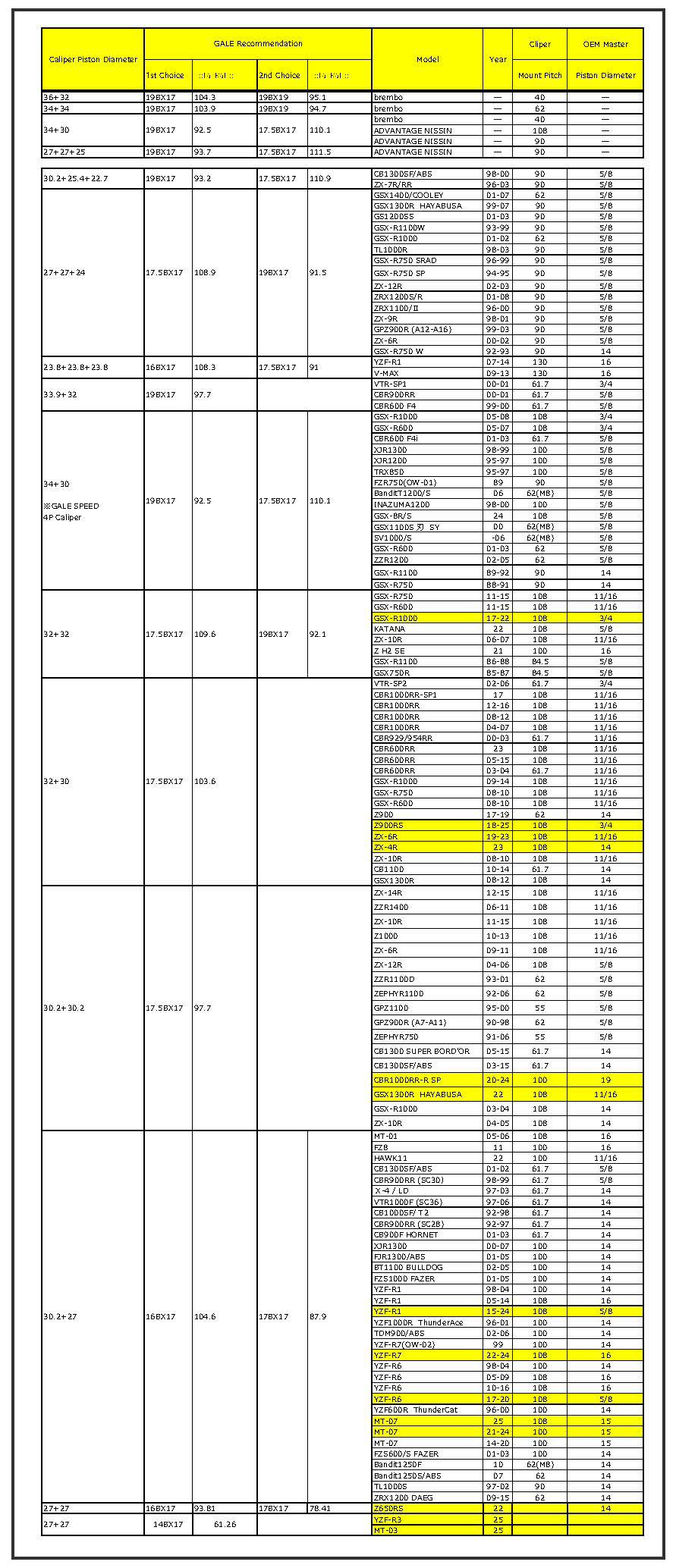

| ■Reference Fitment Data |
| ※The following is internal fitment data we have on file. Please use it for reference only. |
| ※Make your final decision based on the condition of your motorcycle. |

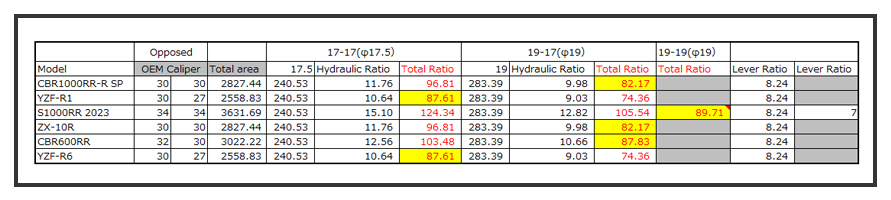

| ■Total ratio data for race-model vehicles |
