FIT CALCULATION FOR SINGLE DISC MASTER CYLINDER



Please check the caliper piston diameter of your vehicle.
Calculated results are data based on theoretical values. It may not be possible to install depending on the condition of the motorcycle and the type of vehicle.
For actual feeling and installation, please consult a specialized motorcycle store.


Click here for double disk fit calculations.



SINGLE DISC CALIPER CALCULATION
　

2-PISTON (OPPOSED) CALIPER
Fill in only piston diameter ①.
※Diameter (2)/(3) values remain “0

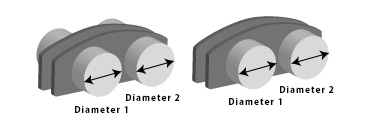

4-PISTON (OPPOSED)/ 2-PISTON (SINGLE PUSH) CALIPER
Fill in piston diameter ①/②.
※The value of diameter (3) remains “0

6-PISTON (OPPOSED) CALIPER
Fill in piston diameter ①/②/③.

　　　
PISTON DIAMETER ①：

PISTON DIAMETER ②：

PISTON DIAMETER ③：

　

CAUTION

Calculated results are data based on theoretical values.
It may not be possible to install depending on the condition of the motorcycle and the type of vehicle.
As for the actual feeling and installation
Please consult a motorcycle specialty store, etc.




RECOMMENDED MASTER CYLINDER LINEUP

VRET/VRE/VRD/VRC 14-17
RE/RD/RM 14-17
VRET/VRE/VRD/VRC 16-17
RE/RD/RM 16-17
VRET/VRE/VRD/VRC 17-17
RE/RD/RM 17-17
VRET/VRE/VRD/VRC 19-17
VRET/VRE/VRD/VRC 19-19
RE/RD/RM 19-17
RE/RD/RM 19-19


※ The above is reference information based on theoretical values.
The lower the number, the harder and shorter the stroke.
The larger it is, the softer and longer the stroke.

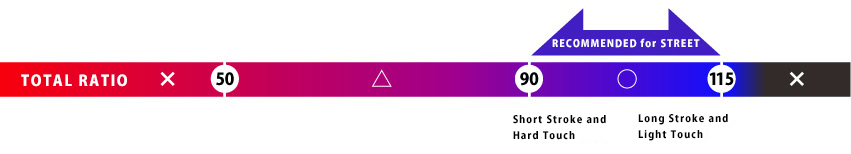

Total ratio 90-115 is recommended for street.






RECOMMENDED MASTER CYLINDER


◆ CYLINDER DIAMETER 　Φ14 ◆
FULCRUM - FORCE POINT: 140mm (hypothetical)
FULCRUM - POINT OF ACTION: 16※/17/18※mm
※ mark indicates VRET/VRE/VRE/VRD ratio adjustment only
HYDRAULIC RATIO:


16mm lever ratio
total ratio
reasonable
17mm lever ratio
total ratio
reasonable
18mm lever ratio
total ratio
reasonable




◆ CYLINDER DIAMETER 　Φ16 ◆
FULCRUM - FORCE POINT: 140mm (hypothetical)
FULCRUM - POINT OF ACTION: 16※/17/18※mm
※ mark indicates VRET/VRE/VRE/VRD ratio adjustment only
HYDRAULIC RATIO:


16mm lever ratio
total ratio
reasonable
17mm lever ratio
total ratio
reasonable
18mm lever ratio
total ratio
reasonable




◆ CYLINDER DIAMETER 　Φ17.5 ◆
FULCRUM - FORCE POINT: 140mm (hypothetical)
FULCRUM - POINT OF ACTION: 16※/17/18※mm
※ mark indicates VRET/VRE/VRE/VRD ratio adjustment only
HYDRAULIC RATIO:


16mm lever ratio
total ratio
reasonable
17mm lever ratio
total ratio
reasonable
18mm lever ratio
total ratio
reasonable




◆ CYLINDER DIAMETER 　Φ19 ◆
FULCRUM - FORCE POINT: 140mm (hypothetical)
FULCRUM - POINT OF ACTION: 16※/17/18※mm
※ mark indicates VRET/VRE/VRE/VRD ratio adjustment only
HYDRAULIC RATIO:


16mm lever ratio
total ratio
reasonable
17mm lever ratio
total ratio
reasonable
18mm lever ratio
total ratio
reasonable
19mm lever ratio
total ratio
reasonable
20mm lever ratio
total ratio
reasonable









≫
