| SIMPLE, LIGHTWEIGHT, COMPACT MODEL |
| A mid-range model designed to be lightweight while maintaining sufficient street performance. The flat and simple 2D machined design blends well with any vehicle, including naked and neoclassical style vehicles. |

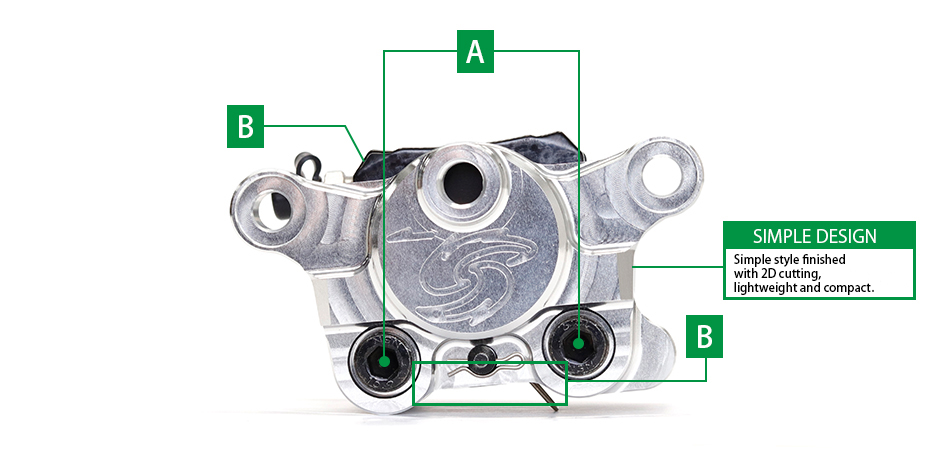

| BILLET REAR 2P AXIAL CALIPER(84mm) |
| Body | Aluminum (6061 material) 2-piece construction |
|---|---|
| Surface Treatment | Anodised Aluminium |
| Mounting Pitch | 84mm |
| Banjo bolt pit | P1.00 |
| Pad | Exclusive product (organic material) included |
| Piston Diameter | 2 Pistons Φ34 |
| Weight (including pad) | 532g |
| Supported Disc Diameter | Φ210～Φ260 (Thickness: 4.0mm～6.0mm) |
 |
| Two bolts are used to fasten the two-piece body structure. SCM (chromoly) bolt specification is available for rigidity. |
 |
| Brake pads suitable for wear and braking power. Excellent ease of handling on the street. |
 |
| The two-piece construction allows the piston and pad storage areas, which are difficult to cut out in a monoblock design, to be machined without waste. By minimizing the space between the disc and the piston, the piston discharge volume is reduced and a direct touch is achieved. |
