| SIMPLE, LIGHTWEIGHT, COMPACT MODEL |
| A mid-range model that is lightweight while maintaining sufficient performance for the street. The flat, simple design finished with 2D cutting is a design that fits in with any vehicle, including naked and neo-classical styles. |
| BILLET FRONT 4P AXIAL CALIPER (40mm) |
| Body | Aluminum (6061 material) 2-piece structure |
|---|---|
| Surface treatment | Anodized |
| Mounting pitch | 40mm |
| Banjo bolt pit | P1.00 |
| Lever specifications | Material |
| Pad | Special item (sintered) included |
| Piston diameter | 4 pistons Φ34/30 (aluminum) |
| Weight (including pad) | 846g |
| Supported Disc Diameter | Φ250～Φ330 (Thickness: 4.0mm～6.0mm) |
 |

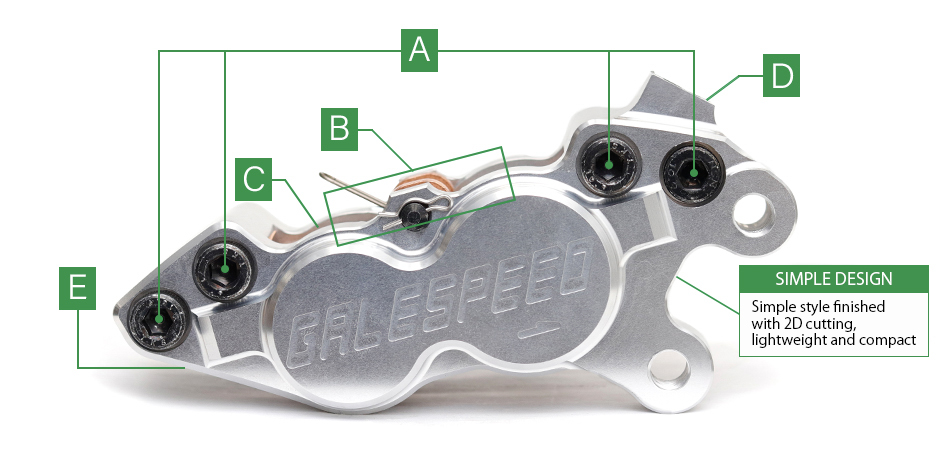

| The two-piece body is fastened with four bolts. SCM (chromoly) bolts are used for increased rigidity. |
 |
| Uses brake pads that are suitable for wear and braking force. Excellent handling on the street. |
 |
| The two-piece structure allows the piston and pad storage area, which is difficult to machine out with a monoblock system, to be machined out efficiently. By minimizing the space that sandwiches the disc, the piston discharge volume is reduced, achieving a direct touch. |
 |
| In order to achieve a simple and clean look, we have used an Air-free banjo bolt (sold separately). |
 |
| Equipped with air ducts to improve the cooling efficiency of the pad. |
