Powder Coat Color Order System

Customize your own wheels with the trusted "KADOWAKI Powder Coat".
When ordering, please consult with the store, or when ordering directly from us,
download the "Special Order Form" at the bottom, fill in the necessary information, and fax your order.

Wheel Type	One complete set of wheels
TYPE-X/TYPE-J/TYPE-E/TYPE-R/TYPE-N	￥60,000
GLIDE S18/9S	￥60,000

※This option is only available for new purchases.
※The displayed prices exclude tax.
※Amounts are for construction in Japan.

KADOWAKI
What is powder coating?

Kadowaki powder coat paint does not contain any organic solvents and is an environmentally friendly painting method that does not produce VOCs (volatile organic compounds) that are harmful to the human body.

Durable film and excellent rust resistance

During the coating process, the polymer forms a network-like structure through a chemical reaction, making it rust-resistant and strong, achieving "longer and more beautiful." In addition, its performance has been proven through various tests.

Film with stable quality/uniformity

Liquid paints do not require mixing or viscosity adjustment, which can affect the finish, and can therefore be finished with a particularly stable and high quality. Unlike solvent paint, static electricity allows for even painting, forming an even coating on the inside of the spring and in the gaps of the cut parts. This prevents paint cracks and peeling in areas that are constantly expanding and contracting.

It has contraction properties

Powder coat not only has a hard surface, but also has flexibility, and follows the paint film without cracking. It has both the hardness that makes it difficult to scratch, and the flexibility to follow the movement of the constantly expanding and contracting spring.

Painting method

In the corona charging method, a negative high voltage is generated from the high voltage generator of the paint gun to the corona pin at the tip, and the ions generated by corona discharge adhere to the paint particles and then to the object to be painted. The corona charging method is the most widely used powder coating method in the world, and can be used with any paint. It is characterized by being relatively resistant to humidity around the painting site, which has a negative effect on the triboelectric charging method.

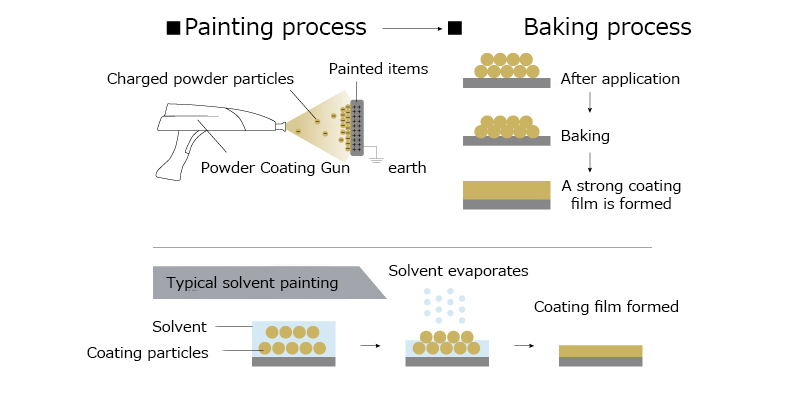

Painting process

High voltage is applied to the electrode at the tip of the spray gun, creating an electric field between the gun and the object to be painted.
At the same time, the object to be painted, with the powder particles discharged from the gun attached to it, is placed in an oven and heated at 150-200°C. The heated powder particles gradually melt, and a chemical reaction causes the polymer to form a network-like structure, which is smoothed and then hardened to form a durable coating.
